Ultra Thin Nickel Mesh
Key Features:
Purity as high as 99.9%.
Uniform opening and good firmness.
As thin as 400mesh per inch with aperture of 30 micron.
Free Sample is available for quality test.
Technical Data Mesh Specification ChartsProduct Description:
What is Ultra thin nickel mesh?

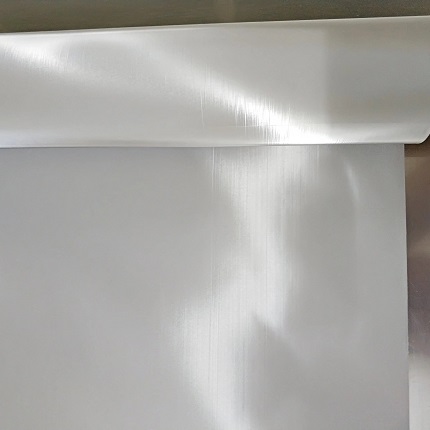

Ultra Thin Nickel Mesh is woven mesh made with ultra thin nickel wire. The commonly used nickel wire’s purity is 99.6%(N6) or 99.9%(N4). Our ultra thin nickel mesh has uniform opening and good firmness. It has very compact weaving structure and uniform thickness because our most advanced weaving technology.
Free Sample is available for quality test.
We are capable of manufacturing ultra thin nickel mesh as thin as 400mesh per inch with aperture of 30 micron. The most commonly ordered size is 350mesh per inch which is available in our inventory all the time. Please feel free to contact with us if you have specific requirements to the ultra thin nickel mesh.
Nickel wire mesh available specifications:
Thickness: 0.03mm~10mm
Opening size: 0.03mm~80mm
Width: 150mm~ 3000mm
Mesh: 0.2mesh/inch~400mesh/inch
Ultra Thin Nickel Mesh is used typically when corrosion resistance is required, and frequently utilized in applications requiring shielding of electromagnetic interference and radio frequency interference.
Ultra Thin Nickel Mesh is also widely used as filtration media, nickel catalyst and nickel mesh electrode. It has high resistance to different chemicals such as caustic acids and alkalis. Other applications include corrosion resistant parts, electronic parts, aerospace, etc.
| Nickel Wire Mesh | ||||
| Mesh count | SWG (Gauge) | Aperture (μm) | Effective section area (%) | Weight (kg/m2) |
| 20 | 32 | 1000 | 62 | 0.83 |
| 24 | 29 | 720 | 46.07 | 1.58 |
| 30 | 35 | 640 | 56.55 | 0.75 |
| 40 | 35 | 430 | 44.8 | 1.00 |
| 50 | 37 | 250 | 35.81 | 0.99 |
| 60 | 36 | 234 | 30.38 | 1.23 |
| 70 | 38 | 320 | 34.41 | 0.90 |
| 80 | 40 | 200 | 38.69 | 0.66 |
| 100 | 42 | 150 | 36.76 | 0.57 |
| 120 | 46 | 149 | 51.34 | 0.25 |
| 140 | 46 | 120 | 44.8 | 0.29 |
| 150 | 45 | 100 | 34.41 | 0.42 |
| 180 | 46 | 80 | 33.04 | 0.36 |
| 200 | 46 | 74 | 31.06 | 0.35 |
| 250 | 48 | 60 | 36.76 | 0.23 |
| 300 | 48 | 40 | 27.83 | 0.27 |
| 325 | 48 | 40 | 23.83 | 0.30 |
| 350 | 49 | 37 | 26.8 | 0.24 |
| 400 | 49 | 30 | 27.83 | 0.21 |
