Monel 400 Mesh

Key Features:

1. Excellent resistance to attack in sea water, SCC in freshwater, dry HCl and HF acids

2. Great material for use in the entire types of media

3. Mesh Size: 0.2mesh/inch to 300mesh/inch

4. Wire dia: 0.03mm to 8.0mm

PDF Download

Product Description:

Monel 400 Mesh (UNS N04400) is available with wire mesh and perforated metal. It has outstanding resistance to sea water corrosion and steam at the elevated temperatures. It offers strong resistance to sulfuric acid (H2SO4) and hydrochloric acid (HCl) and has great resistance to stress corrosion cracking. Monel 400 Mesh is extensively used in the solid-liquid filters in chemical treatment units, seawater filters, electric and electronic engineering, waste incinerators, heat exchangers, processing systems and petroleum refining plants.

Properties of Monel 400 Mesh:

  • Resistance to static and running seawater attack
  • High mechanical strength
  • Resistance to SCC
  • Prevents attack by acidic and alkali media
  • Perfect finish
  • Prolong service

Monel 400 alloy Chemical Composition:

Al C Cu Fe Mn Ni Si
2.30 to 3.15 % <0.25  % 26 to 33  % <26 to 33  % <1.5 % 63 % 0.5 %

 Monel 400 Mesh Property Data:

Specifications ASTM B164, AMS 4730
Density 0.319 lbs/in³
Tensile Strength 80 Kpsi*
Elongation 30%*
Melting temperature 1350oC or 2460oF
Max. Operating Temperature 1000° F
Modulus of elasticity 173 kN/m2 or 25092
Modulus of rigidity 65.3 kN/m2 or 2592 ksi
Coefficient of linear thermal expansion 12.4 µm/m•°C at -100oF
Thermal conductivity 19.8 W/m•°C at -100oF
Specific heat capacity 378 J/kg•°C at -100oF
Electrical Resistivity 0.511 µΩ•m at 70oF
Hardness 143 Brinell
Yield Strength, ksi 30 to 55 ksi (annealed)

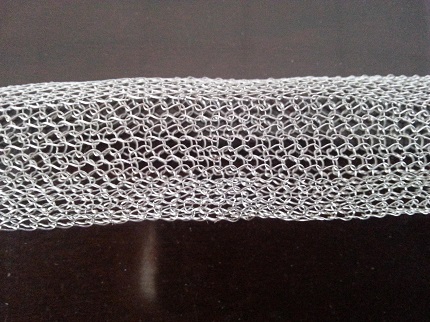

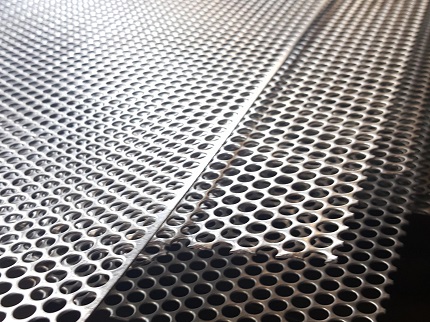

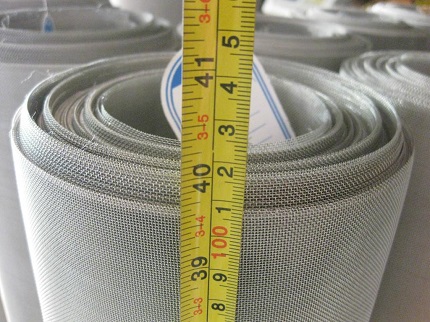

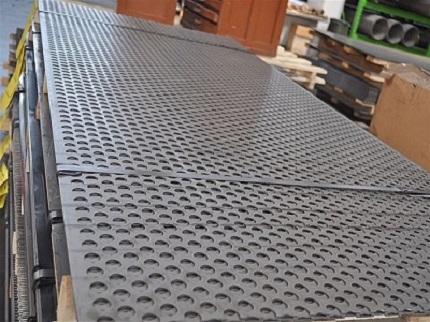

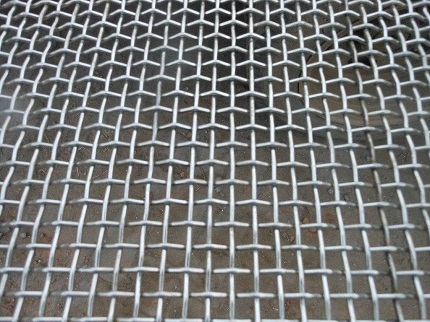

Heanjia Super-Metals produce a wide range of mesh products in Monel 400 such as woven wire mesh, Monel perforated metal mesh and further fabrications according to client’s needs at competitive industrial price in the highest quality.

Found in 1984, Heanjia Super-Metals is a quality producer of mesh products, supplying Monel wire mesh, Monel expanded metal and Monel perforated metal mesh. These are used in a wide range of industries including oil and gas, chemical and marine engineering. Primarily the Monel mesh in the different weaving styles is used as filters, sieves and strainers in the various industrial applications. Our large capacity in-house production unit enables us to produce extensive stock of Monel cloth meeting their immediate requirements. Our recent investment in the in-house machinery facilities enable us to develop Monel mesh sieves and woven screens for a variety of screening equipments. Becoming the leading supplier of mesh products in the present time, we deliver the mesh screens worldwide and to the various types of industries. Contact us at sales1@nickel-wiremesh.com to place an order or for further information.
