Nilo 36 Mesh

Key Features:

  1. Stable mesh size at the various temperatures
  2. Good mechanical strength
PDF Download

Product Description:

Nilo 36 Mesh is also called as Invar 36 Mesh. It is made from low expansion alloy 36 that retains stable size and has small coefficient of thermal expansion from cryogenic temperatures to 260oC. Alloy 36 maintains good strength and hardness at the extremely low temperature limits.

Nilo 36 Mesh/Invar 36 Mesh Chemistry

Fe Ni Co C Si S Cr
Bal 36 % 0.5 % 0.05 % 0.40 % 0.015 % 0.25 %

Nilo 36 Mesh/Invar 36 Mesh Property Data

Density 0.291 lb/cu in
Specific Gravity 8.05
Curie Temp 535oF or 279oC
Melting Point 2600oF or 1427oC
Electrical Resistivity 84 Micro-ohm-cm
  495 Micro-ohm-cm
Thermal Conductivity 0.10 W/cm oC
  72.6 BTU-in/sq. ft-hr
Specific Heat 0.123 Cal/g- oC
  0.123 BTU/lbm- oF
Thermal Expansion 4.9 ppm/oF at (75oF to 842oF
  8.9 ppm/oC at 25oC to 450oC)
Tensile Strength 75 ksi or 518 MPa
Yield Strength 40 ksi or 276 MPa
Elongation 34 % in 2 inches
Hardness annealed HRB 80 Rockwell
Modulus of Elasticity 20.5 MPsi or 141 kMPa
Coefficient of thermal expansion 0.8 -1.6 at 30oC to 100oC

Mesh types available

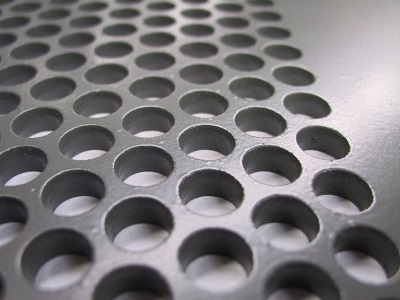

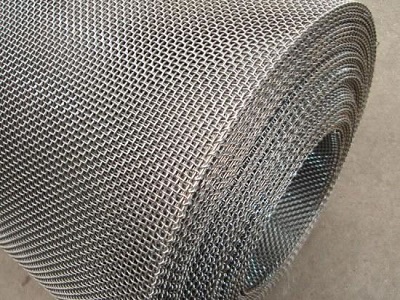

Woven Wire Mesh Expanded Metal Perforated Metal Further fabricated mesh products
